H BEAM Building Aluminum Formwork Profiles

Name: H BEAM Building Aluminum Formwork Profiles
Brand: Goomay
Price: 1 USD

Quality H BEAM Building Aluminum Formwork Profiles for sale

Brand Name : Goomay

Model Number : GM-JZMB-11

Certification : ISO9001:2015 , ISO14001:2015 , ISO45001:2008

Place of Origin : Langfang,Hebei,China

MOQ : MOQ 2000KGS For Initial Order,the quantity could be negotiable

Price : Negotiable

Payment Terms : 30%deposit+70% against BL copy, D/P, L/C

Supply Ability : 5000T MONTHLY

Delivery Time : After drawings confirmed,4-7days moulds ready , after samples approved , 7-10days delivery for 200TONS

Packaging Details : Inside:packed with protective film to protect each piece. Outside: Bulk Quantity , Thermal Shrinkage Bags , Whole Craft Paper

Product Name : Aluminium Template Profiles , Building Formwork Profiles

Material : China Alminium Origin Ingot 6005-T6 , 6061-T6

Surface Treatment : Mill Finish , Anodized Silver

Length : 6M - 13M or Customized Length

Wall Thickness : 2MM-15MM or Customized Wall Thickness

Characters : Light Weight,Easy-Installation,Recycled

Certificates : ISO9001:2015 , ISO14001:2015 , ISO45001:2008 , Hebei Provincial Qualified Cerificate

Application : Concrete Construction , Real Estate Construction

Contact Now

Easy-Assembling Aluminium Profiles for Building Formwork,H BEAM (Alloy 6061-T6)

TECHNICAL DATA

H-BEAM TYPES

140 H Beam with Wood 140 H Beam 122 H Beam
(For Joist) (For Joist & Ledger) (For smaller slab thickness)

140-H BEAM (Alloy 6061-T6)

X-Sectional Area (As) = 1233 mm²
Yield Strength (Fy) = 241 Mpa
Bending Moment (Allowable) = 4.03 KN-m (S.F. = 2.0)
Shear Strength (Allowable) = 59.45 KN (S.F. = 2.0)

122-H BEAM (Alloy 6061-T6)

X-Sectional Area (As) = 1041.92 mm²
Yield Strength (Fy) = 241 Mpa
Bending Moment (Allowable) = 3.19 KN-m (S.F. = 2.0)
Shear Strength (Allowable) = 50.22 KN (S.F. = 2.0)

SPACING TABULATION (FOR 140-H BEAM)

SLAB THICKNEWW(mm)	IMPOSED LOAD(mm)	JOIST SPACING(mm)	LEDGER SPACING(mm)	PROPS SPACING(mm)
100	9.47	610	2000	1400
150	11.15	488	2000	1350
180	12.16	488	2000	1300
200	12.83	488	2000	1250
250	14.51	488	2000	1200
280	15.52	488	1800	1150
300	16.19	406	1800	1100
350	17.87	406	1800	1000
400	19.55	406	1600	1000

Imposed load is 1.4 DL + 1.7 LL, where LL is 50 psf + 25 psf impact load.
The suggested ledger and props spacing may very depending on the length of joist and floor height.
Floor height considered in this analysis is 3.6 meters and length of joist is 3.9 to 4.5 meters.

H BEAM Building Aluminum Formwork Profiles

MAIN COMPONENTS & ACCESSORIES

Diagram	Description	Weight	Article No.
	140-H Beam	3.15 Kg/m	2010000
	140-H Beam with wood	3.16 Kg/m	2030000
	122-H Beam	2.73 Kg/m	2040000
	A Clamp	0.11 Kg	7000000
	U-head	2.55 Kg	0500001
	Swivel coupler	1.20 Kg	0500002
	Props 3.6m	17.32 Kg	3102136
	Tri-pod	5.32 Kg	3000018

PROJECTS

H BEAM Building Aluminum Formwork Profiles

DESCRIPTION

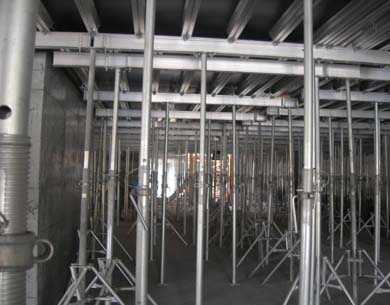

Shoring Props Form system provides simple but effective beam and slab decking for conventional casting works. This system is the best alternative where the Table Form System is not applicable. It can be assembled and stripped easily for fast operations for various concrete slab design structures. Minimum number of manpower can be use but optimum productivity can be achieved.

Basically, the main Components for this system are the aluminum 140-H Beam which acts as joist and ledger for the plywood decking, and the Heavy duty adjustable steel props which carry all the imposed load.

Main Advantages

Improve productivety
Environmental protection and energy saving
Minimize labour
Reduce construction cycle time
Materials versatile

Less wastage of plywood
High recovery value for the used materials
No nails needed
No small parts loss
Suitable for any structures

System Main Parts

Alu 140-H Beam Joist
Alu 140-H Beam Ledger
Heavy Duty Adjustable Props
U-head Assembly
Tri-Pod assembly
Plywood
